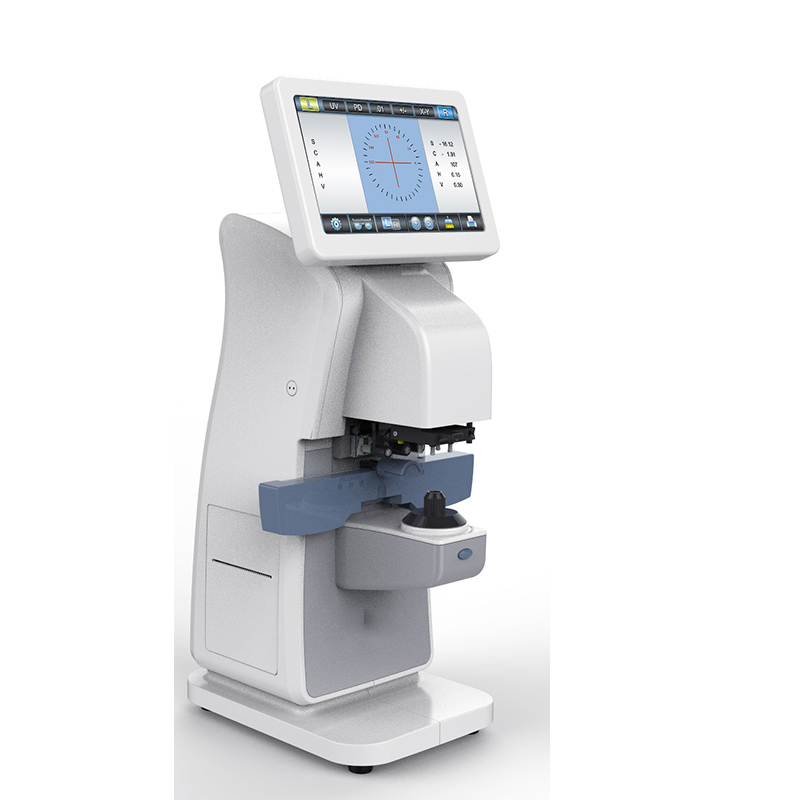

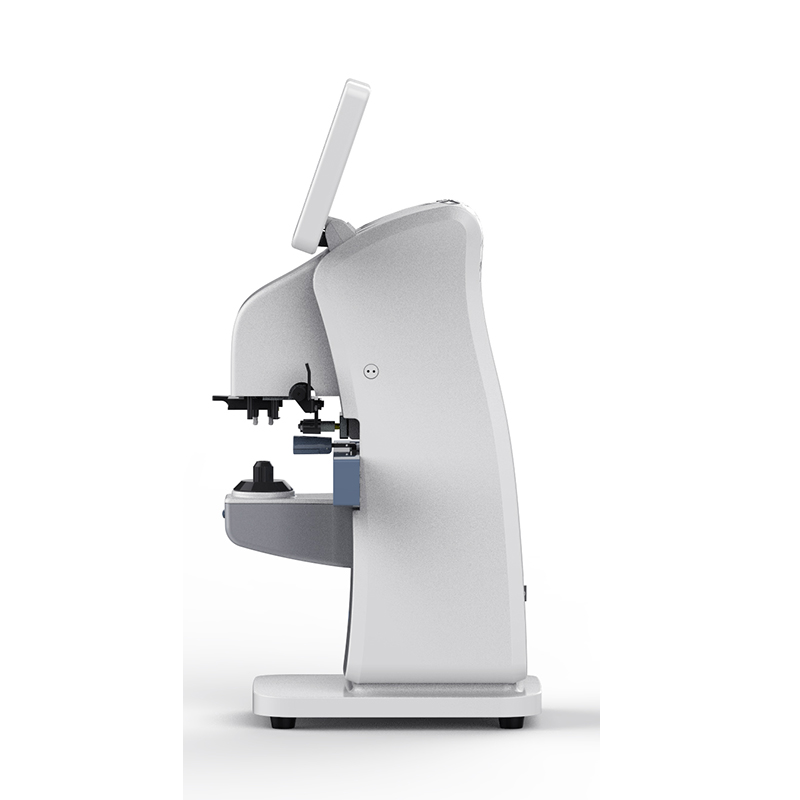

LENSOMETRO DIGITAL / MODELO LM300
No se pudo cargar la disponibilidad de retiro
MODELO EN TENDENCIA
Especificación
Rango:
Lente esférica 0 a ±35D (incrementos 0,01D/0,06D/0,12D/0,25D)
|
Range: |
Increments |
|
|
<0D, ≥-5D |
>0D, ≤+5D |
±0.06 |
|
<-5D,≥-10D |
>+5D,≤+10D |
±0.09 |
|
<-10D,≥-15D |
>+10D,≤+15D |
±0.12 |
|
<-15D,≥-20D |
>+15D,≤+20D |
±0.18 |
|
<-20D,≥-35D |
>+20D,≤+35D |
±0.25 |
Cylinder Lens: 0 to±10D (Increments 0.01D/0.06D/0.12D/0.25D)
Axis: 0°to 180 (Increments 1°)
ADD: 0 to 10D (Increments 0.01D/0.06D/0.12D/0.25D)
Prism: 0 to 15A (0.01△)
Prism Range Increments
>0△, ≤5△ 0.1△
>5A, ≤15△ 0.2△
Cylinder Mode : +，+/-，-
Prim Mode: cartesian coordinates H: l,o .v: u,D P-B;polar coordinates
mm: X and Y in mm
Increments: 0.01D/0.06D/0.12D/0.25D
PD Measurement
Measure single vision lens, bifocal lens, trifocal lens and progressive lens, etc.
UV/Blue Light Transmissivity Detection
CL Lens Accessible
Reflect Ratio: >10% Reflect Ratio while Diopter over +/-10D > 20%
Contact lens: 0 to ±25D, BC 6.00 to 9.00
Monitor: 7.0 Inch HD Touch Screen
Menu: humanized Design and Easy Operation
Lens Diameter Capacity: 20mm-100mm
Voltage: AC 100 (±10% ) -240 ( ±10%)v 50/60Hz 40VA
Power: 40w
Weight: 6.8kgs
Machine Size:55omm*350mm*350mm(L*W*H)
Storage Condition
a.Temperature:5-40℃ (In use）-20-60°c( Storage/Transportation)
1. Humidity: 30-85% 10-95% (Storage/Transportation)
2. Air Pressure: 700-1060hpa
3. Altitude: up to 2000m
4. Others: No Harmful Dust or Smog
Axis: 0°to 180 (Increments 1°)
ADD: 0 to 10D (Increments 0.01D/0.06D/0.12D/0.25D)
Prism: 0 to 15A (0.01△)
Prism Range Increments
>0△, ≤5△ 0.1△
>5A, ≤15△ 0.2△
Cylinder Mode : +，+/-，-
Prim Mode: cartesian coordinates H: l,o .v: u,D P-B;polar coordinates
mm: X and Y in mm
Increments: 0.01D/0.06D/0.12D/0.25D
PD Measurement
Measure single vision lens, bifocal lens, trifocal lens and progressive lens, etc.
UV/Blue Light Transmissivity Detection
CL Lens Accessible
Reflect Ratio: >10% Reflect Ratio while Diopter over +/-10D > 20%
Contact lens: 0 to ±25D, BC 6.00 to 9.00
Monitor: 7.0 Inch HD Touch Screen
Menu: humanized Design and Easy Operation
Lens Diameter Capacity: 20mm-100mm
Voltage: AC 100 (±10% ) -240 ( ±10%)v 50/60Hz 40VA
Power: 40w
Weight: 6.8kgs
Machine Size:55omm*350mm*350mm(L*W*H)
Storage Condition
a.Temperature:5-40℃ (In use）-20-60°c( Storage/Transportation)
1. Humidity: 30-85% 10-95% (Storage/Transportation)
2. Air Pressure: 700-1060hpa
3. Altitude: up to 2000m
4. Others: No Harmful Dust or Smog
-
